View Tasks
-
Click “Resources Overview” in the upper right corner of the menu.
-

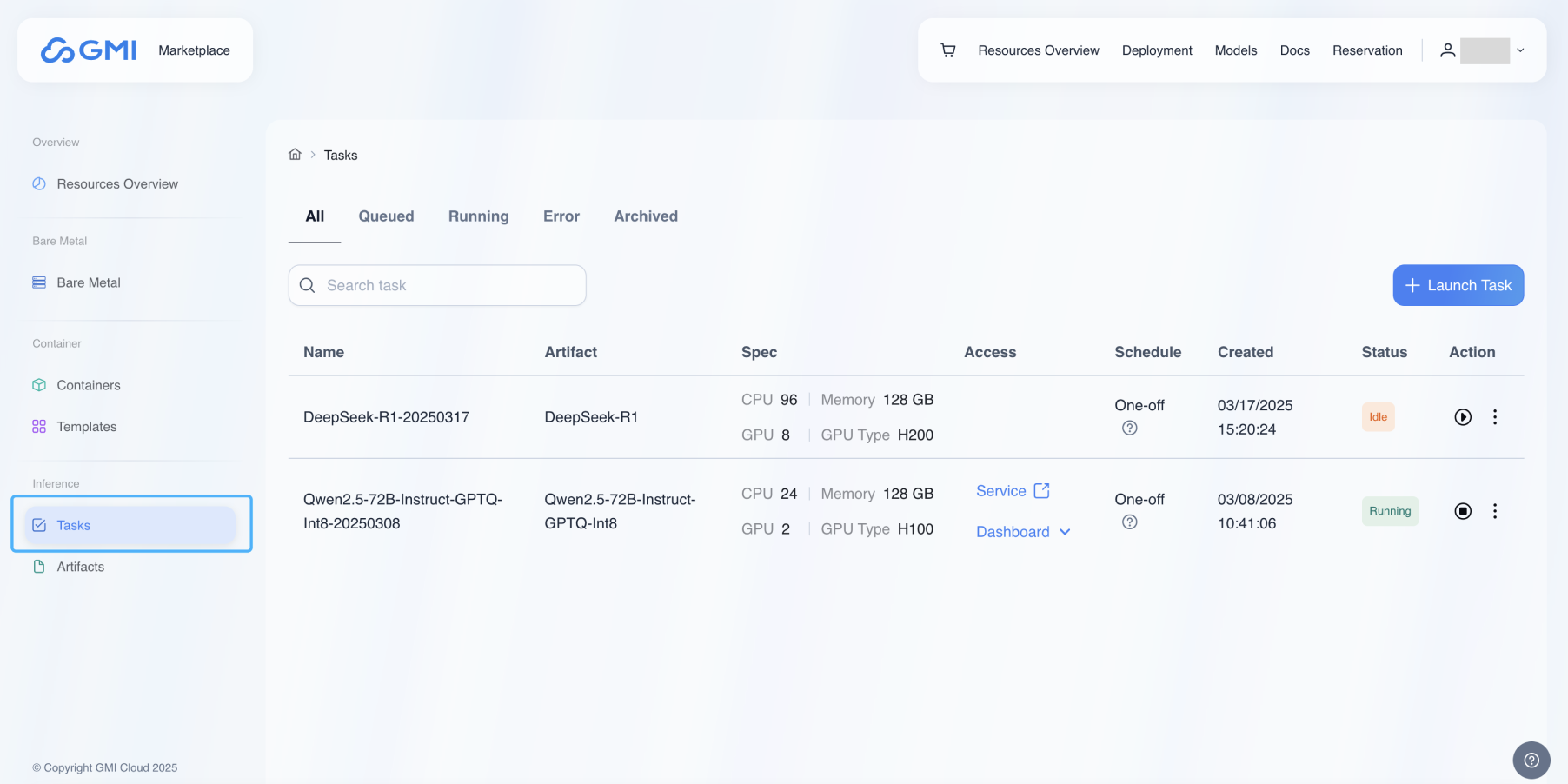

Click on “Tasks” in the left-hand menu.You can view tasks dashboard.
- Name: Task name.
- Artifact: Task created from which artifact.
- Spec: One replica required resources specification.
- Access: Service - dedicated endpoint URL Dashboard - monitor task deployment
- Schedule: Task’s scheduling, One-off or daily.
- Created: Task created time
-
Status:
Idle - The task is not currently running and is waiting for execution. No resources are being used. In-queue - The task is waiting in line to be executed. Starting - The task is in the process of initializing. Resources are being allocated, and the task is preparing to run. Running - The task is currently executing. Resources are actively being used to perform the task. Need Stop - The task is about to be terminated. -

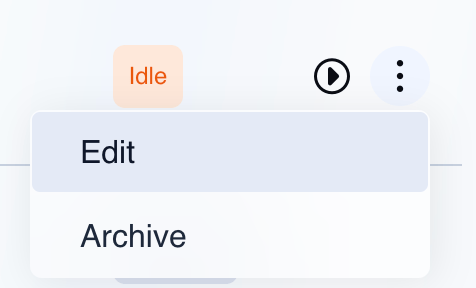

Actions: Click button
to deactive the running task. Click button
to active the idle task. Click Edit menu to edit the task. Click Archive menu to archive the task.
-

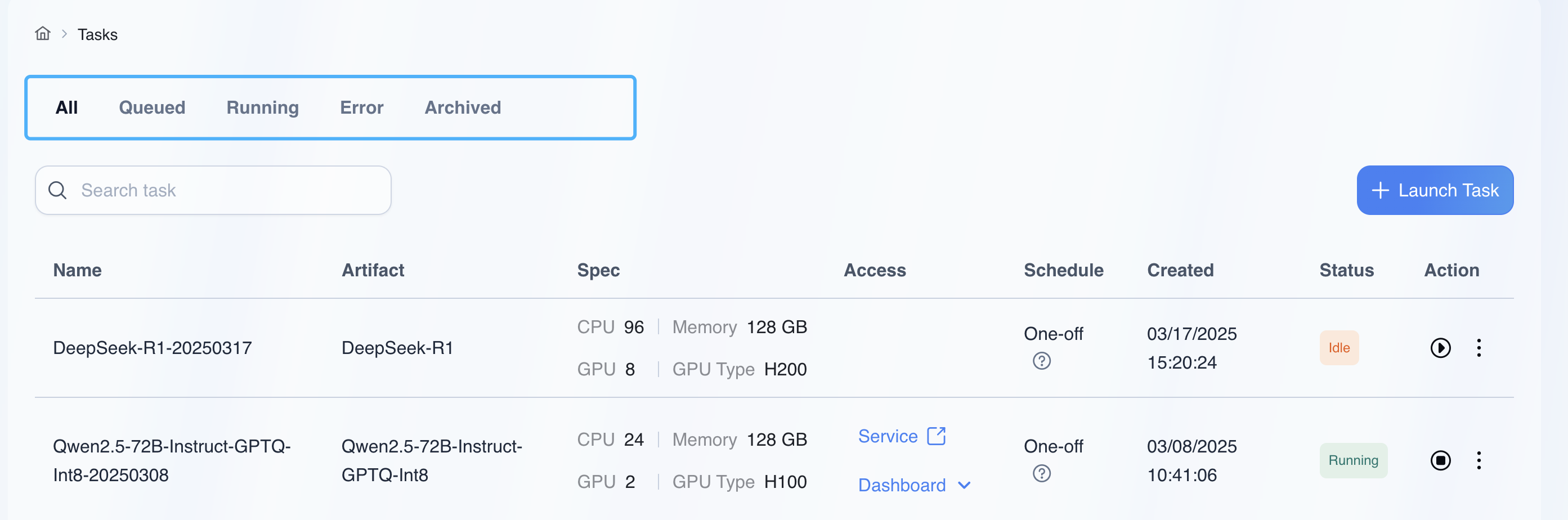

Click the status tab to review the tasks corresponding to each status.
Launch Tasks
- Click “Launch Task” button to launch task for provided models or customized artifacts.
-

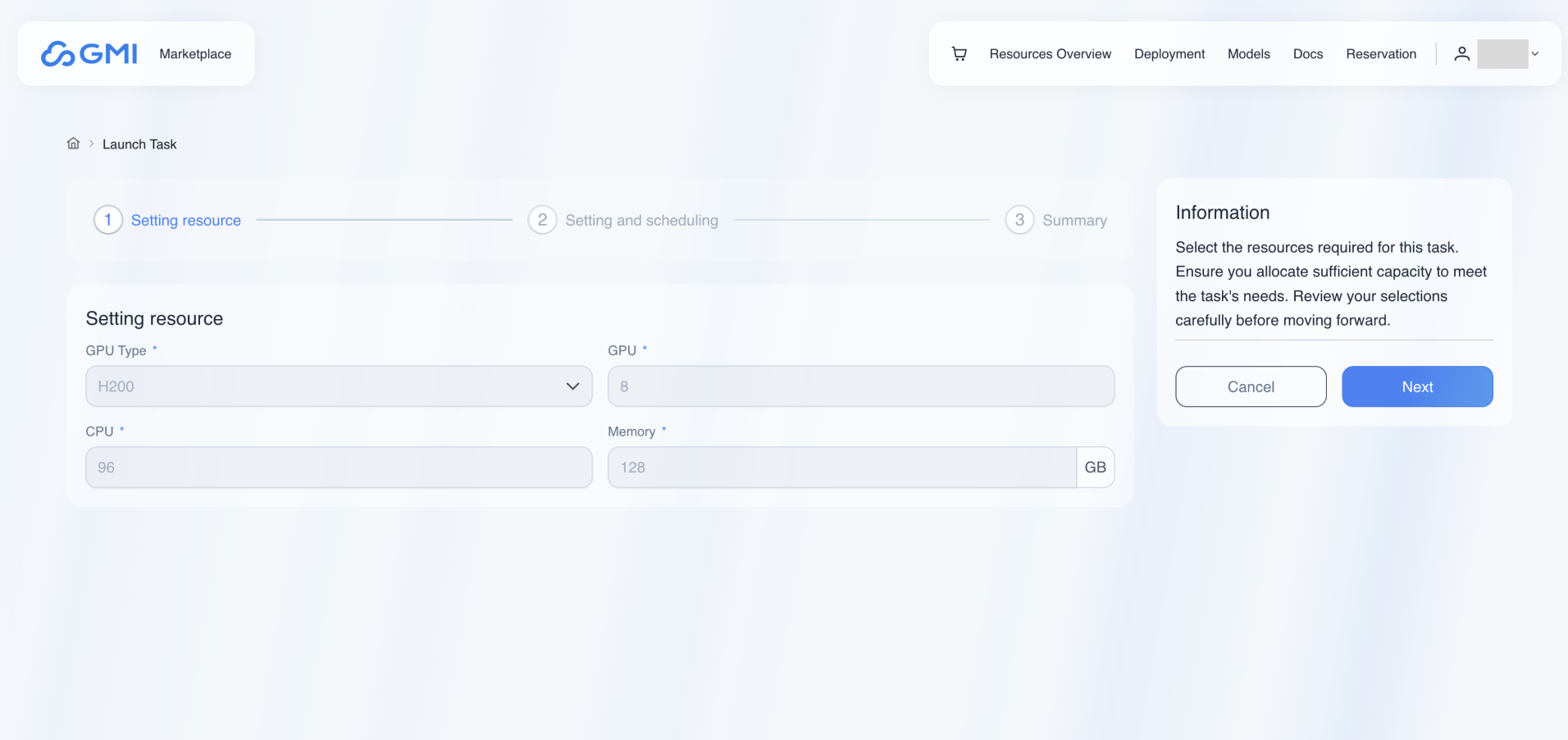

Setting resource
The resource cannot be edited; click the “Next” button.
-

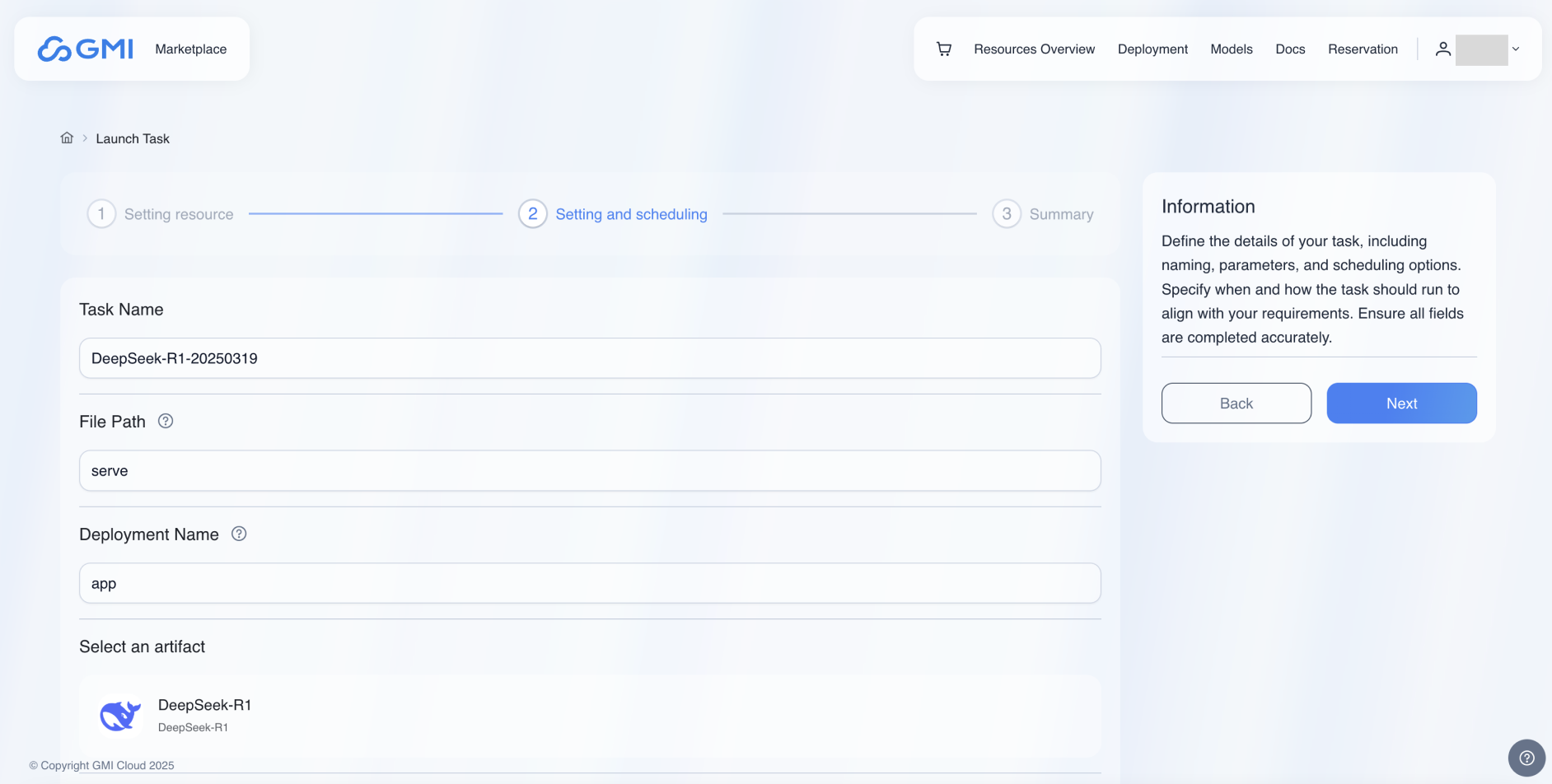

Setting and scheduling
Task Name: Define task name.
File Path: Specify the script file name to be executed in the Docker image(without the file extension). Fox example, if the image includes a script named serve.py, enter serve here.
Deployment Name: Specify the deployment name that will be exposed to the Ray cluster by the script. For example, you can use app as the deployment name.

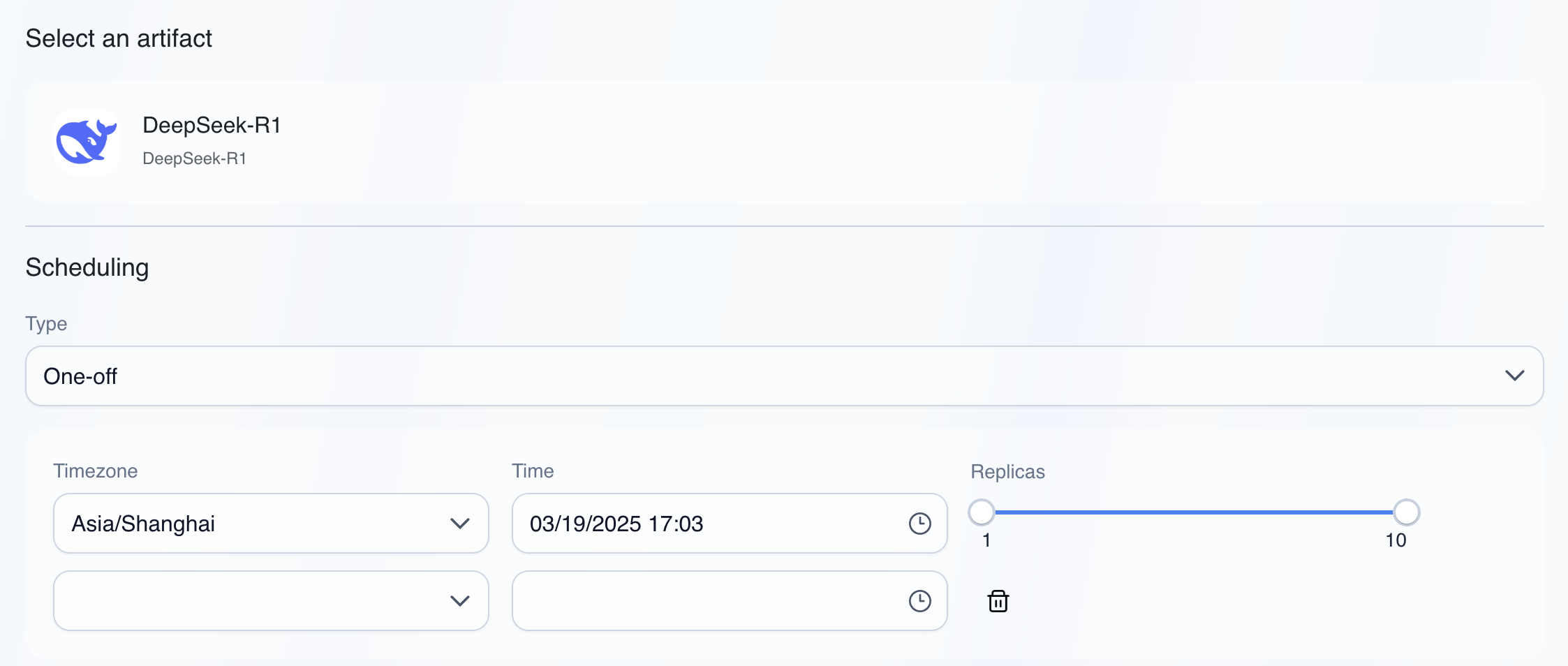

Type: One-off or Daily
One-off - The task runs once as scheduled time.
Daily - The task runs at the first scheduled time and can update replica numbers at subsequent daily scheduled times. This option is designed for recurring, predictable workloads where scaling needs follow a consistent daily pattern.
Timezone: Select the timezone for scheduling.
Time: Select the time for scheduling.
Replicas: Select the Min replicas and Max replicas for schedule.
-
Summary
Review the information in the summary page. After confirmation, click the “Launch” button to launch task.
-
Active the Task
In the task list, locate the task and then click button
to active the idle task.
